Fanuc A16B-2200-0700 & 0701 PCB VR1 Adjustments

Fanuc A16B-220-0700 & 0701 PCB VR1 Adjustments

If you are having trouble with the outputs of your Fanuc A16B-2200-0700 or A16B-2200-0701 PCB the VR1 pot may need adjusting

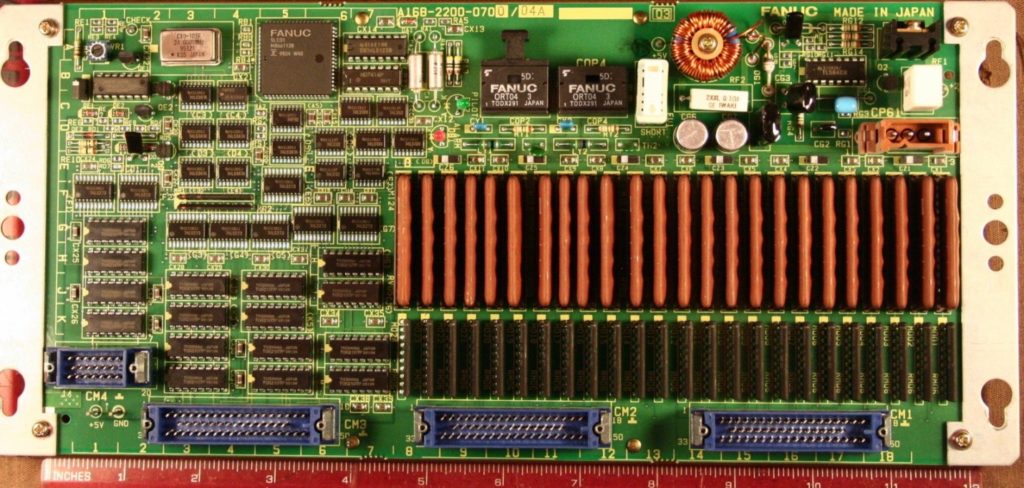

The VR1 pot in the upper left hand corner of this picture may have to be adjusted if the outputs are not working. The VR1 pot sets the firing level of the outputs. The firing level will vary from machine to machine. If you are having a problem with the outputs, then adjust VR1.
